The right length

Where do I find the sole length for my ski boots?

5 minutes read
The sole length is an important factor when it comes to ski boots and ski touring boots. We explain why the length is so important, where to find it and how to measure it.

Ski boots don’t just stop at foot length or size specification (mostly in EU, US sizes or Mondopoint). In some cases, for the purpose of mounting ski bindings, for example, the sole length is crucial.

The sole length of a ski boot has nothing to do with the foot's length. | Photo: La Sportiva / Giampaolo Calza
The sole length of a ski boot has nothing to do with the foot’s length. | Photo: La Sportiva / Giampaolo Calza

What is the ski boot sole length?

  • The length of the sole is found on the outside of the ski boot.
  • The boot sole length is measured in millimetres and must ultimately fit into the ski binding.

The shoe size in Mondopoint, on the other hand, refers to the foot length in centimetres, which must match the respective internal dimensions of the shoe. Frequently, a shell (= sole length) covers two or more shoe sizes.

As is the case with dress sizes and shoe sizes, there is no standard size for the soles of ski boots, which can easily be converted. The sole length is neither directly linked to the shoe size, nor is it the same for all manufacturers. Even with a manufacturer, different ski boot models of the same size can have different soles! In particular, ski touring boots are often designed with a shorter sole length for ascent-oriented competition and alpine use, as this results in better walking comfort without skis and also saves weight.

Why do I need a sole length?

The sole length is necessary to mount and adjust the binding onto the ski.

  • On the one hand, the centre marking of the boot should match the mounting point on the ski so that the ski can be balanced.
  • On the other hand, bindings have only limited adjustment ranges. With some models, up to three shell sizes can be covered, in particular, very lightweight ski touring bindings have no adjustment range. For this reason, it makes sense to be able to mount a binding on the ski, if you have the boot. Otherwise, in the worst case, only re-drill.

How do I find or measure the length of the sole?

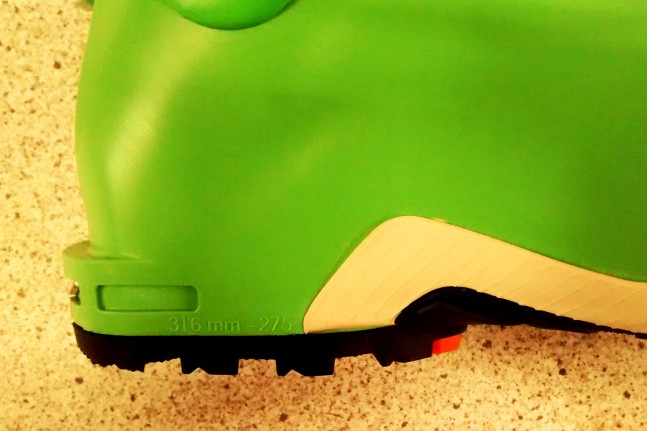

The sole length is normally indicated as a three-digit millimetre on the outside of the boot, usually in the heel area. This impression provides the most reliable information. Depending on the brand, the site may vary.

If the specification is not available or can not be seen, you have to measure the length yourself. For this purpose, the best method is to apply a meter and measure the sole from the heel to the heel.

Manufacturer’s charts: Sole lengths for ski touring boots

Please note: We accept no responsibility for the accuracy of the information supplied to us by the manufacturer.

  1. Sole length Atomic ski boot
  2. Sole length Black Diamond ski boot
  3. Sole length Dynafit ski boot
  4. Sole length Fischer ski boot
  5. Sole length Hagan ski boot
  6. Sole length K2 ski boot
  7. Sole length Lange ski boot
  8. Sole length La Sportiva ski boot
  9. Sole length Movement ski boot
  10. Sole length Salomon ski boot
  11. Sole length Scarpa ski boot
  12. Sole length Scott ski boot
  13. Sole length Rossignol ski boot

1. Sole length for Atomic ski boot

Size in Mondopoint Style Backland
Sole length in mm
 22-22,5  248
 23-23,5  258
 24-24,5  268
 25-25,5  278
 26-26,5  288
 27-27,5  298
 28-28,5  308
 29-29,5  318
 30-30,5  328
 31-31,5  338

2. Sole length for Black Diamond ski boot

Größe in Mondopoint Modelle Alpine Tour
Sohlenlänge in mm
Style Freeride (Factor/Shiva MX)
Sole length in mm

 23-23,5  270  277
 24-24,5  280  287
 25-25,5  290  297
 26-26,5  300  307
 27-27,5  310  317
 28-28,5  320  327
 29-29,5  330  337
 30-30,5  340  347

3. Sole length for Dynafit ski boot

Size in Mondopoint style Dy.N.A. Evo
Sole length in mm
Style Dy.N.A 6, TLT and TLT7
Sole length in mm
Style One, Neo, Vulcan, Mercury
Sole length in mm
 Radical
Sole length in mm
 Khion
Sole length in mm
 22-22,5  257  264  266
 23-23,5  257  264  266  272
 24-24,5  267  274  276  282
 25-25,5  269  277  284  286  292
 26-26,5  279  287  294  296  302
 27-27,5  289  297  304  306  312
 28-28,5  299  307  314  316  322
 29-29,5  309  317  324  326  332
 30-30,5  327  334  336  342
 31-31,5  344  352

Sole length for Dynafit style PDG

Größe in Mondopoint Modell PDG
Sole length in mm
 23,5-24  259
 24,5-25  269
 25,5-26  379
 26,5-27  289
 27,5-28  299
 28,5-29  309
 29,5-30  319

4. Sole length for Fischer ski boot

Size in Mondopoint Style Travers/Travers Carbon
Sole length in mm
25-25,5 276
26-26,5 286
27-27,5 296
28-28,5 306
29-29,5 316
30-30,5 326

5. Sole length for Hagan ski boot

Size in Mondopoint Modelle Core ST/Women
Sole length in mm
 23-23,5  259
 24-24,5  269
 25-25,5  279
 26-26,5  289
 27-27,5  299
 28-28,5  309
 29-29,5  319
 30-30,5  329

6. Sole length for K2 ski boot

Size in Mondopoint Sole length in mm
 22,5  266
 23,5  276
 24,5  286
 25,5  296
 26,5  306
 27,5  316
 28,5  326
 29,5  336
 30,5  346

7. Sole length for Lange ski boot

Size in Mondopoint Style XT Freetour
Sole length in mm
24-24,5 286
 25-25,5 296
 26-26,5 306
 27-27,5 316
 28-28,5 326
 29-29,5 336

8. Sole length for La Sportiva ski boot

Size in Mondopoint Style Spectre, Spectre 2.0, Sparkle, Sparkle 2.0
Sole length in mm
Style Spitfire, Spitfire 2.0, Sideral, Sideral 2.0, Starlet, Starlet 2.0
Sole length in mm
 23-23,5  264
 24-24,5  274 267
 25-25,5  284 277
 26-26,5  294 287
 27-27,5  304 297
 28-28,5  314 307
 29-29,5  324 317
 30-30,5  334 327
 31-31,5  344 337

Sole length for La Sportiva style Syborg:

Size in Mondopoint Style Syborg
Sole length in mm
 23,5-24  257
 24,5-25  267
 25,5-26  277
 26,5-27  287
 27,5-28  297
 28,5-29  307
 29,5-30  317

9. Sole length for Movement ski boot

Size in Mondopoint Style XT Freetour
Sole length in mm
24,5-25 288
25,5-26 298
26,5-27 308
27,5-28 318
28,5-29 328
29,5-30,5 338

10. Sole length for Salomon ski boot

This information is not yet available to us from the manufacturer

11. Sole length for Scarpa ski boot

Size in Mondopoint Style Maestrale RS, Gea
Sole length in mm
Style F1 TR, F1 Women, F1 Evo/Women
Sole length in mm
Style Alien
Sole length in mm
 Style Alien 3.0
Sole length in mm
 Style Freedom RS, Freedom SL, Freedom
Sole length in mm
 Style T1 Women
Sole length in mm
 Style TX Comp, TX Pro/Women
Sole length in mm
 Style T2 Eco/Women
Sole length in mm
 21,5-22  256  257 277
 22,5-23  271  264  267 283 275 284
 23,5-24  280  288  262  242  277 292 283 291
 24,5-25  288  280  271  251  287 300 291 299
 25,5-26  297  289  279  260  297 309 299 309
 26,5-27  306  297  287  268  307 318 307 317
 27,5-28  314  305  296  276  317 327 316 325
 28,5-29  322  314  305  284  327 335 325 334
 29,5-30  331  322  313  293  337 343 333 342
 30,5-31  340  330  301  347 351 351
 31,5-32  348 359
 32,5-33  356

12. Sole length for Scott ski boot

Size in Mondopoint Style G1 and G2
Sole length in mm
Superguide, Cosmos, Celeste
Sole length in mm
 23-23,5  277 266
 24-24,5  287 276
 25-25,5  297 286
 26-26,5  307 296
 27-27,5  317 306
 28-28,5  327 316
 29-29,5  337 326
 30-30,5  347 336
 31-31,5 346

13. Sole length for Rossignol ski boot

Size in Mondopoint Style Pure, Alltrack, Alias, Kiara, Evo, Kelia
Sole length in mm
Style R18
Sole length in mm
Comp J
Sole length in mm
 15-15,5  205
 16-16,5  205
 17-17,5  215
 18-18,5  223  235
 19-19,5  235  235
 20-20,5  246  345
 21-21,5  254  255
 22-22,5  278  264  265
 23-23,5  278  275
 24-24,5  288  285
 25-25,5  298  295
 26-26,5  308  305
 27-27,5  318
 28-28,5  328
 29-29,5  338
 30-30,5  348
 31-31,5  358
 32-32,5  368
